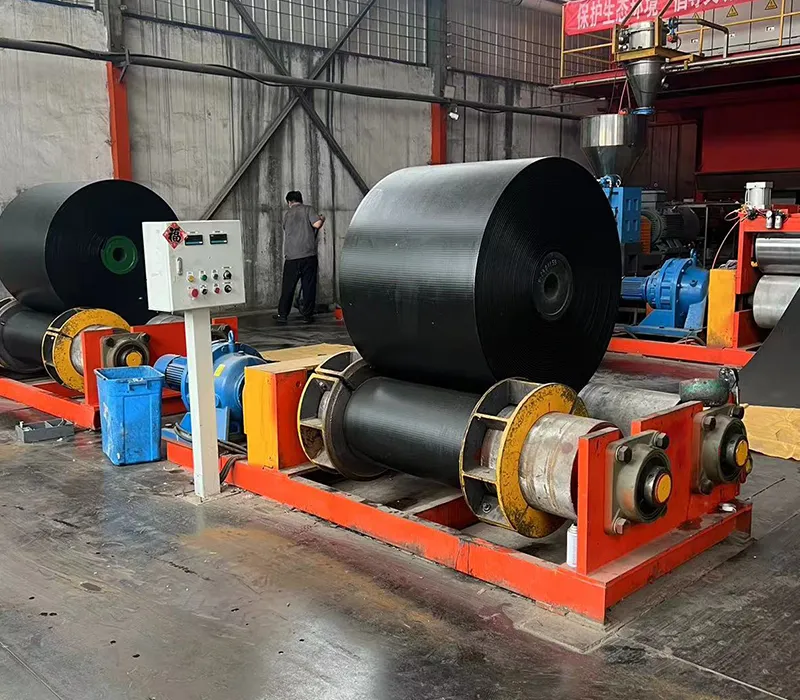

Nylon Conveyor Belt zhu

Nylon Conveyor Belt

EP & NN Fabric Conveyor Belts | EVER JOY China Manufacturer

Русский

Request a quotation | WhatsApp +86 15175229655 | info@everjoyconveyor.com

EP and NN fabric conveyor belt samples
EVER JOY manufactures EP (polyester warp/nylon weft) and NN (nylon warp/nylon weft) rubber fabric conveyor belts for mines, quarries, crushing and screening plants, cement works, ports and other bulk material handling operations. We review the conveyor duty and purchasing specification to confirm carcass construction, cover properties, dimensions and export packing.

Supply at a glance: EP100, EP150, EP200, EP300, EP400 and EP500 fabric grades; custom constructions from 1 to 10 plies; belt width up to 2,200 mm; top cover 2–20 mm and bottom cover 1.5–20 mm. The feasibility of any specific fabric, ply, width and cover combination is subject to technical confirmation.

1. EP vs. NN Conveyor Belts

Feature EP fabric carcass NN nylon fabric carcass
Warp (longitudinal) Polyester Nylon (polyamide)
Weft (transverse) Nylon (polyamide) Nylon (polyamide)
Typical characteristics Generally lower longitudinal elongation and good dimensional stability Good flexibility; considered where impact absorption and bending performance matter
Selection factors Working tension, take-up travel, pulley diameters, troughability and splicing The same factors, with particular attention to working elongation and take-up capacity
EP or NN identifies the carcass material; it does not by itself establish the cover rubber’s abrasion, heat, oil or flame resistance. Conveyor design and conveyed material must be considered together.

2. Fabric Grades, Plies and Belt Strength

2.1 EP Fabric Grade Series

EP fabric grade Nominal strength grade per fabric ply
EP100 100 N/mm
EP150 150 N/mm
EP200 200 N/mm
EP300 300 N/mm
EP400 400 N/mm
EP500 500 N/mm
These numbers describe nominal fabric strength grades, not certified tensile test results for every finished belt.

2.2 How to Read a Finished Belt Designation

For example, EP400/4 commonly denotes an EP carcass with a nominal finished-belt strength of 400 N/mm and four plies. Four EP100 plies are one typical fabric combination. These examples explain naming conventions. Simply multiplying a fabric grade by the number of plies is not proof of a finished belt’s tensile rating. The finished construction and its acceptance test requirements must be confirmed.

2.3 Custom Manufacturing Range

Parameter EVER JOY supply information
Carcass EP; specific NN fabric grades confirmed against the buyer’s specification
EP fabric grades EP100, EP150, EP200, EP300, EP400, EP500
Number of fabric plies 1–10 plies, custom construction
Maximum manufacturing width 2,200 mm
Top cover thickness 2–20 mm, customizable
Bottom cover thickness 1.5–20 mm, customizable
Overall belt thickness Determined by fabric carcass, skim rubber and both covers
Roll length and weight Based on the order, roll diameter, handling equipment and shipping limits
Edges and splices Confirmed against the agreed edge construction and splice requirements
The 1–10-ply and cover-thickness ranges describe customization options, not unrestricted availability of every combination. Specific NN grades and single-ply thicknesses must be confirmed from factory technical specifications.

Request a quotation | WhatsApp +86 15175229655 | info@everjoyconveyor.com

3. Typical Constructions and Cover Thickness

Example construction Plies Top cover Bottom cover Approximate overall thickness
EP100 × 3 3 3 mm 1.5 mm Approx. 7.5 mm
EP100 × 4 4 4 mm 2 mm Approx. 10 mm
EP150 × 4 4 6 mm 2 mm Approx. 12–14 mm
EP200 × 4 4 6 mm 2 mm Approx. 13 mm
These are representative construction examples, not a stock list or a universal thickness tolerance. Common top/bottom cover combinations include 3+1.5, 4+2, 5+2, 6+2, 6+3, 7+2 and 8+2 mm. Other combinations within the specified top and bottom ranges may be evaluated against the order. Cover thickness alone does not determine service life; abrasion, impact and compound properties also matter.

4. Cover Rubber Grades and Standards

The following are reference performance requirements used to specify general-purpose rubber covers. They are not EVER JOY test results or an assertion that every belt is certified. All relevant characteristics and test methods must be considered.

4.1 DIN 22102 Cover Grades

Grade Min. tensile strength Min. elongation at break Max. abrasion loss
W 18 MPa 400% 90 mm³
X 25 MPa 450% 120 mm³
Y 20 MPa 400% 150 mm³
Z 15 MPa 350% 250 mm³

4.2 ISO 10247 and Chinese GB/T 7984 Cover Grades

Standard / grade Min. tensile strength Min. elongation at break Max. abrasion loss
ISO 10247 — H 24 MPa 450% 120 mm³
ISO 10247 — D 18 MPa 400% 100 mm³
ISO 10247 — L 15 MPa 350% 200 mm³
GB/T 7984 — H 24 MPa 450% 120 mm³
GB/T 7984 — D 18 MPa 400% 100 mm³
GB/T 7984 — L 15 MPa 350% 200 mm³
ISO 10247 classifies cover characteristics; ISO 14890:2026 specifies general-purpose textile-construction conveyor belting. They serve different purposes. GB/T 7984-2013 is China’s product standard for general-purpose fabric conveyor belts. The contract must identify the applicable edition and acceptance method.

4.3 Other Regional Requirements

Market Standard or grading system that may be specified
Russia and GOST-based projects GOST 20-2018; belt type and application requirements must be agreed
Australia AS 1332; common cover grades include M and N
India IS 1891; common grades include M24 and N17
United States Relevant RMA/ARPM specifications and contract requirements
Japan JIS K 6322 and other applicable specifications
A grade from one system is not automatically equivalent to a grade from another. Heat-, oil- and flame-resistant or underground applications may require additional performance tests and documentation.

5. Quality Control and Manufacturing

Depending on the project specification, inspection may cover finished belt tensile strength, elongation at reference load, cover tensile strength and elongation, abrasion, cover-to-ply adhesion, ply-to-ply adhesion, width and thickness. The actual test scope, results and documents available for an order must be confirmed. EVER JOY’s production base is in Guzhen County, Bengbu, Anhui Province, China. The factory occupies approximately 140 mu (9.33 hectares), with an overall production capacity of approximately 20,000 linear metres per day and a maximum manufacturing width of 2,200 mm. Order lead time and feasible constructions depend on the confirmed specification. Available delivery terms may include EXW factory, FOB agreed Chinese loading port and FCA Horgos, subject to the order. Packing, roll diameter, per-roll weight and transport routing are agreed for the shipment.

6. Industries and Selection Considerations

Application Conditions to review
Mining and quarries Lump size, sharp edges, abrasion and loading impact
Crushing and screening plants Impact loads, particle size, pulley diameter and working tension
Cement and building materials Limestone, clinker, dust, load and actual material temperature
Ports and bulk terminals Continuous duty, handling constraints, roll mass and moisture
Power and industrial facilities Coal, minerals, bulk materials and applicable safety requirements
A standard EP/NN carcass does not automatically provide heat, oil, acid/alkali or flame resistance. Such applications require a suitable cover compound, construction and agreed special-duty requirements.

7. Send Your Specification for a Quotation

Please provide the following details to start a technical review and quotation:
Purchasing detail Example
Width 1,000 mm
Carcass and finished belt rating EP400/4 (example)
Top and bottom covers 4 mm / 2 mm
Overall thickness State separately if required
Cover grade DIN-Y (example requirement; subject to confirmation)
Quantity and rolls 500 m total; 100 m per roll
Material handled Limestone
Destination Country, city or destination port
If the complete designation is unknown, send a photograph of the existing belt marking or the conveyor’s technical data.

Request a quotation | WhatsApp | info@everjoyconveyor.com

For EP-only selection, see our EP Fabric Conveyor Belts page.

8. Frequently Asked Questions

What is the difference between EP100 and EP400/4?

EP100 commonly identifies a nominal strength grade of one EP fabric ply. EP400/4 typically denotes a finished carcass rated at 400 N/mm with four plies. The finished rating must still be verified under the agreed specification.

Can you manufacture 1–10-ply conveyor belts?

Constructions from 1 to 10 plies can be discussed. Not every fabric grade, width and cover combination is feasible; technical confirmation is required.

What are your custom top and bottom cover thickness ranges?

Top covers can be specified from 2 to 20 mm and bottom covers from 1.5 to 20 mm, subject to the chosen carcass and manufacturing feasibility.

Which is better, EP or NN?

Neither is universally better. EP generally has lower longitudinal elongation; NN generally offers good flexibility. Working tension, take-up, impact and pulley conditions determine suitability.

Does the standards table mean your products are certified to all listed grades?

No. The table presents reference requirements. The supplied compound grade, test results and documentation must be agreed for the specific order.

How can I receive a faster quotation?

Send belt width, finished rating or ply count, top and bottom covers, quantity and destination. Existing belt photos or drawings are helpful. EVER JOY | Industrial Rubber Conveyor Belt Manufacturer in China
